What Is a Gable Vent and Does Your Attic Need One?

Here’s what most homeowners get wrong about gable vents: they assume that having one — or even two — means their attic is properly ventilated. It’s not that simple. A gable vent sitting on each end of your attic might look like a solution, but depending on how your attic is shaped, where your other vents are, and which direction the wind blows, those gable vents could actually be working against you. The real question isn’t whether you have a gable vent. It’s whether your gable vent is doing anything useful.

What Is a Gable Vent, Actually?

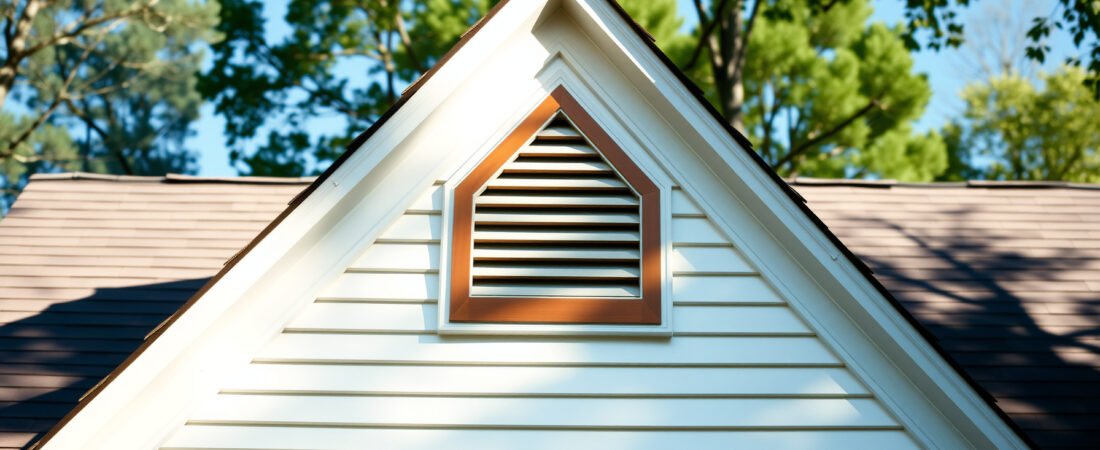

A gable vent is a fixed or louvered opening built into the triangular wall section — the gable end — at the peak of your roofline on the sides of your house. Unlike soffit vents at the bottom of the eaves or ridge vents running along the roof peak, gable vents sit in the vertical wall itself, usually near the very top of that triangular section. They’re often covered with a decorative louvered grille that lets air pass through while keeping rain and pests out.

The original idea is sound: hot, humid air rises into the attic, and gable vents positioned high on opposite walls allow cross-ventilation — wind pushes in one side and pulls stale air out the other. On paper, that’s elegant. In practice, the effectiveness depends entirely on wind direction, gable vent sizing, and whether you have other vents that either help or actively compete with that airflow path. Most people don’t think about this until they’re already dealing with mold on the sheathing or warped rafters.

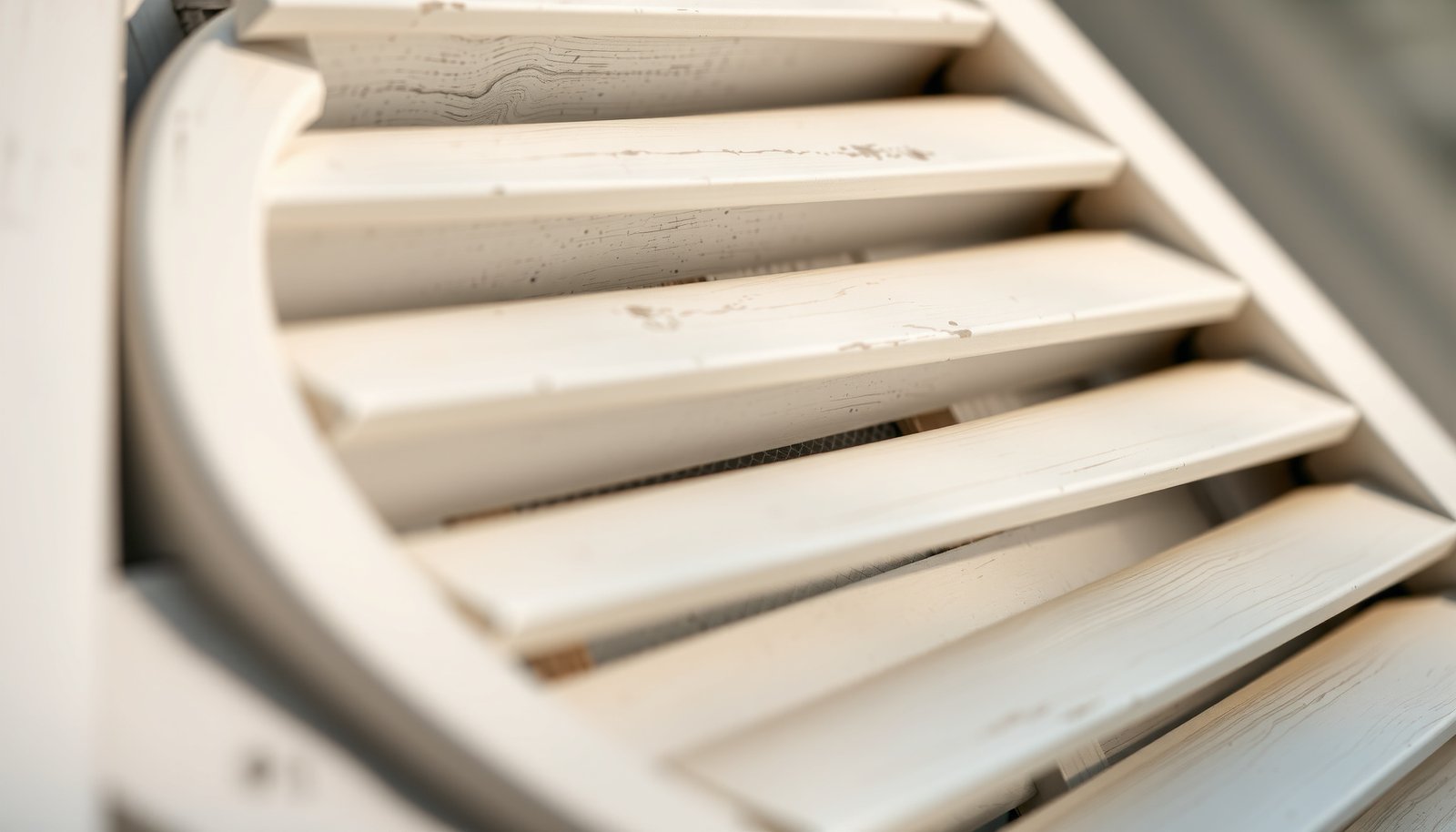

This close-up shows the louvered construction of a typical gable vent — notice the angle of the slats, which deflects rain while still allowing airflow, a design detail that matters a lot in climates with driving horizontal rain.

Why Gable Vents Can Actually Hurt Your Attic Ventilation

This is the part nobody talks about. If you have both gable vents and a ridge-and-soffit ventilation system, those two systems can work against each other. Here’s the mechanism: ridge vents are designed to draw air in low (at the soffits) and exhaust it high (at the ridge), using the stack effect — warm air rises and escapes at the peak. But if you also have gable vents open near that same ridge height, air from outside can enter through the gable vents and exit straight out the ridge, short-circuiting the soffit-to-ridge airflow path entirely. Your soffits end up doing almost nothing.

The result is that large sections of your attic floor — right above your insulation — get essentially no fresh air movement. Humidity from inside the house migrating through the ceiling has nowhere to go. Attic relative humidity can exceed 70% RH even on moderate days, and at that level, mold colonies on wood sheathing can establish within 48 to 72 hours. Some building scientists recommend blocking or significantly reducing gable vent area when a full ridge-and-soffit system is installed, specifically to prevent this short-circuit effect. That’s counterintuitive, but it’s real.

“Gable vents made sense as a standalone solution, but when homeowners layer them on top of ridge-and-soffit systems, they create competing pressure zones. One system starves the other. I’ve pulled attic inspections where the ridge vent was perfectly functional, but half the attic was staying at 75% relative humidity because the gable vent was essentially short-circuiting the intake path.”

Daniel Forsyth, Building Performance Consultant and Certified Indoor Environmentalist, 22 years in residential moisture diagnostics

How Do You Know If Your Gable Vent Is Actually Working?

The honest answer is that most homeowners have no idea whether their gable vent is contributing to ventilation or just decorating the wall. There are a few ways to actually check. The most practical one involves a handheld anemometer — a simple wind speed meter that costs under $30 — held near the interior side of the gable vent on a mild, breezy day. If you’re getting at least 50 feet per minute of air movement, it’s doing something. If you’re reading near zero, the vent is effectively blocked, undersized for your attic volume, or being cancelled out by competing vent pressure.

A more telling test: check your attic humidity with a calibrated hygrometer in summer. Attic humidity should stay within about 10 to 15 percentage points of outdoor humidity on a typical day. If it’s 55% RH outside and your attic is hitting 72% RH, your ventilation isn’t working — regardless of how many vents you have. The hygrometer reading won’t tell you which vent is failing, but it confirms you have a problem worth diagnosing. You can read about how these sensors work in our guide to Ridge Vent Cost: What Homeowners Actually Pay for Attic Ventilation, which covers the full picture of passive attic vent systems including how ridge vents compare in total installed cost.

Pro-Tip: On a cold winter morning, go into your attic and look at the underside of the roof deck near the peak. If you see frost or condensation on the sheathing anywhere — especially in the center of the attic away from the gable ends — your gable vents are ventilating the ends well but the middle is a dead zone. That pattern almost always points to a short-circuit airflow problem, not an insufficiency of vent area.

What Size Gable Vent Does Your Attic Actually Need?

The standard rule from most building codes is 1 square foot of net free vent area (NFVA) for every 150 square feet of attic floor space — or 1:300 if you have a proper vapor barrier on the attic floor. That ratio applies to your total ventilation system, not just the gable vents. So if your attic is 1,200 square feet, you need a minimum of 8 square feet of NFVA total. The problem is that gable vent manufacturers list gross vent area, not net free area — and the louvers, screen, and frame cut actual airflow by 25% to 50% depending on the product. A vent labeled “24 x 16 inches” has a gross area of about 2.7 square feet but may only pass 1.3 to 1.8 square feet of actual air.

Here’s a comparison of how different attic sizes and ventilation scenarios map to gable vent requirements:

Attic Floor Area	Min. NFVA Required (1:150)	Typical Gable Vent NFVA (each)	Gable Vents Needed (pair)
800 sq ft	5.3 sq ft	~1.5 sq ft (18″x24″ vent)	2 vents total (1 each end)
1,200 sq ft	8.0 sq ft	~1.5 sq ft (18″x24″ vent)	3+ vents per end or supplement with soffit
1,800 sq ft	12.0 sq ft	~2.3 sq ft (24″x24″ vent)	Gable vents alone are insufficient — hybrid system required

For larger attics — anything over 1,200 square feet — relying on gable vents alone puts you in an uphill battle against code minimums and real-world airflow physics. That’s where most mid-size homes end up under-ventilated despite having “vents on both ends.”

When Does a Gable Vent Make Sense vs. When Should You Choose Something Else?

Gable vents are genuinely the right choice in a few specific situations. If your attic has no ridge vent and no plans to install one — common in older homes with certain hip roof profiles or low-slope sections — a pair of properly sized gable vents is a simple, low-cost passive solution that works. They’re also easier to install than soffit retrofits in finished soffits, and they don’t require modifying your roofline. In climates with predictable prevailing winds, a well-oriented gable vent pair can move a surprising amount of air.

But there are clear situations where gable vents aren’t the answer — or need to be reconsidered:

• You already have ridge and soffit vents: Adding or keeping gable vents can short-circuit the balanced intake-exhaust system and reduce its efficiency significantly.
• Your home sits in a wind-sheltered location: Gable vents depend on wind-driven cross-ventilation. In a valley, surrounded by trees, or in a dense urban neighborhood, there may not be enough consistent wind pressure to drive meaningful airflow.
• Your attic has complex geometry: Hip roofs, L-shapes, or attics with multiple levels and knee walls create dead zones that gable vents on opposite ends simply can’t reach. Air takes the path of least resistance — straight across, not into the corners.
• You’re dealing with chronic summer humidity: If your attic regularly exceeds 60% RH in summer despite having gable vents, passive ventilation may not be sufficient and an attic fan or powered system deserves serious consideration.
• Your gable vents face north-south in a predominantly east-west wind climate: The orientation mismatch means prevailing winds hit the wall rather than passing through the vent, and cross-ventilation barely functions.

How to Get the Most Out of a Gable Vent If You’re Keeping It

If your attic setup suits gable vents — no competing ridge system, reasonable attic geometry, and a home in a location with regular wind — there are concrete steps that make a real difference. The first is deferred maintenance most homeowners ignore: screens. The fine mesh screen on most gable vents plugs with debris, spider webs, wasp nests, and dust over five to ten years. In some older homes, the screen is so clogged that effective airflow is reduced by 60% or more. Inspect and replace the screen every few years — it’s a $10 fix that often solves what looks like a ventilation problem.

The second optimization is often overlooked: the interior side of the vent. Many gable vents in finished attics have insulation batt pushed directly against them or are partially blocked by stored boxes. Air has to have a clear path from the vent opening into the attic volume — at least 12 inches of clearance on the interior side. Beyond physical clearance, think about airflow continuity through the attic. Just as you’d address air gaps around a door with something like Magnetic Weatherstripping for Doors: Does It Work Better Than Foam? to control where air moves, the same logic applies in the attic — every gap, baffle, and blockage shapes whether your ventilation strategy actually works. Here’s a practical checklist:

1. Inspect the screen and louvers from inside the attic with a flashlight — look for debris buildup, wasp nests, bird nesting material, and torn screen mesh that lets pests in.
2. Measure the net free area by checking the manufacturer’s label or spec sheet for your vent model — don’t assume the labeled dimensions tell the whole airflow story.
3. Clear 12+ inches of interior clearance on both vent ends — pushed insulation and stored items are the most common cause of gable vents performing below their rated airflow.
4. Check for competing vent systems — if you have a ridge vent running the length of your roof, consider whether your gable vents are positioned to short-circuit that system and whether blocking or replacing them makes sense.
5. Install a humidity monitor inside the attic and compare readings to outdoor conditions — a reliable baseline measurement taken over two weeks in summer tells you more than any visual inspection.
6. Seal attic floor penetrations — plumbing chases, recessed lights, and HVAC duct gaps push warm humid interior air directly into the attic, overwhelming any vent system. Ventilation can’t fix an unsealed attic floor.

That last point is the counterintuitive one most articles about gable vents skip entirely: your vent is only as effective as the air barrier below it. A gable vent doing exactly what it should can still fail to keep attic humidity under control if the attic floor is leaking conditioned air. Fixing the source beats improving the exhaust every time.

If you’ve optimized your gable vent situation — proper sizing, clear screens, no competing systems, a reasonable climate — and your attic humidity is still running above 60% RH in summer, that’s the point where you start looking at the rest of your passive ventilation setup seriously. A properly integrated system, whether that means adding soffit intake vents, installing a ridge vent, or understanding the real installed cost of each option, is the path forward. Gable vents are a useful tool, but they work best when you understand exactly what they can and can’t do — and stop assuming that any vent is better than thinking it through.
