Soffit Vents Explained: How They Prevent Attic Moisture and Mold

Here’s what most people get wrong about soffit vents: they think blocked or missing soffit vents are a ventilation problem. They’re not. They’re a moisture problem — and that distinction changes everything about how you fix it. A poorly ventilated attic doesn’t just run hot in summer. It becomes a slow-motion humidity trap that quietly pushes relative humidity above 70% for weeks at a time, creating exactly the conditions mold needs to colonize your roof deck, rafters, and insulation before you ever notice a stain on the ceiling below.

Soffit vents are the intake side of your attic’s passive ventilation system. Without adequate intake at the eaves, ridge vents and gable vents become essentially decorative — hot, moist air has nowhere to come from, so it doesn’t move at all. Most homeowners don’t think about this until they’re already staring at black streaks on plywood or getting a repair estimate that runs into the thousands. Understanding what soffit vents actually do — mechanically, physically — puts you ahead of that outcome.

Why Attic Moisture Is a Ventilation Problem Before It’s a Mold Problem

Attic air doesn’t stay still. Warm air rises from the living space below, carries moisture with it, and accumulates in the attic where it meets cooler roof surfaces. When that air hits a surface at or below the dew point — often around 55°F in a moderately humid climate — it deposits liquid water directly onto wood. That’s condensation, and it doesn’t take dramatic amounts to cause damage. Even a thin film of moisture repeated daily over a season is enough to raise wood moisture content above the 19% threshold where mold growth becomes likely.

The mechanism that stops this isn’t a dehumidifier or a fan. It’s continuous airflow that replaces humid attic air before it has time to condense. Soffit vents make that possible by pulling cooler, drier outdoor air in at the lowest point of the attic — the eaves — while ridge or gable vents exhaust the accumulated warm air at the peak. Without that intake, the system stalls. Think of it like trying to pour liquid out of a sealed bottle: without a second opening, nothing moves efficiently.

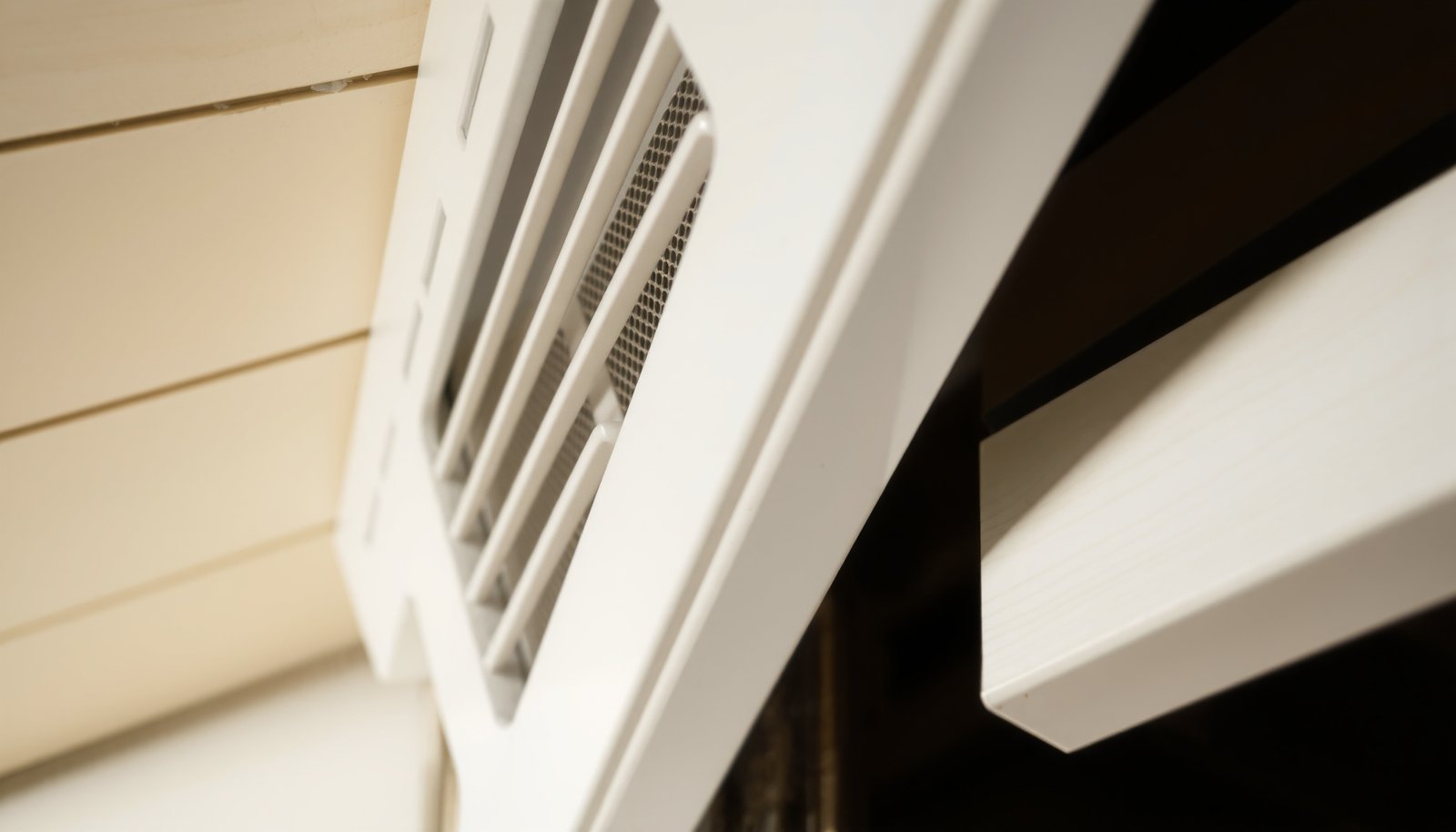

This close-up view shows how soffit vent placement at the eave line creates the intake point that drives the entire attic airflow system — without it, even a perfectly installed ridge vent does almost nothing to move moisture out.

What Actually Blocks Soffit Vents (It’s Not What You Think)

The obvious culprit is debris — leaves, wasp nests, bird material blocking the vent slots from outside. That does happen. But the far more common problem, and the one that goes undiagnosed for years, is insulation pushed up against the soffit vents from the inside. When an attic is insulated, blown-in insulation or batts frequently migrate toward the eaves during installation or over time, and they smother the intake opening completely. The vent looks fine from outside. The slots are clear. But airflow is zero because there’s six inches of fiberglass sitting right behind it.

This is why attic baffles — also called rafter baffles or insulation stops — exist. They’re cardboard or foam channels installed between rafters at the eave to hold a clear air channel from the soffit vent to the open attic space above the insulation. Without them, even a house with new soffit vents installed can have near-zero intake airflow. In most attics we’ve seen evaluated after mold complaints, the soffit vents were present and unobstructed on the exterior — the insulation blockage inside was the actual problem the whole time.

Pro-Tip: Before assuming your soffit vents are working, take a flashlight into the attic and look toward the eaves. You should be able to see daylight through the vent openings and feel cool air moving in. If you see a wall of insulation instead, baffles need to be installed before any other ventilation improvement will make a meaningful difference.

How to Size Soffit Vents Correctly (The 1/150 Rule Most Installers Ignore)

There’s a ventilation ratio that building codes reference: the net free area of ventilation should equal at least 1/150 of the attic floor area, or 1/300 if the venting is split roughly evenly between low intake and high exhaust. Most people installing soffit vents don’t calculate this — they just put in what fits or what the previous owner left. The result is an attic that technically has soffit vents but is still chronically under-ventilated.

Net free area matters because not all soffit vents are equal. A 16×8-inch continuous soffit vent might have a net free area of only 9 square inches per linear foot depending on its louver design, while a different product of the same size might offer 15 square inches. The packaging will specify this in square inches of net free area (NFA). Running the actual math for your attic square footage before purchasing makes the difference between a ventilation system that works and one that just looks like it should.

Attic Floor Area	Min. Total NFA (1/150 rule)	Min. NFA if balanced intake/exhaust (1/300)
1,000 sq ft	960 sq in (6.7 sq ft)	480 sq in intake + 480 sq in exhaust
1,500 sq ft	1,440 sq in (10 sq ft)	720 sq in intake + 720 sq in exhaust
2,000 sq ft	1,920 sq in (13.3 sq ft)	960 sq in intake + 960 sq in exhaust

One honest nuance here: the 1/150 and 1/300 ratios are minimums, not targets. In climates with high outdoor humidity, significant temperature swings, or homes where air-sealing between the living space and attic is poor, you may need to exceed those minimums to see meaningful results. A building scientist or qualified HVAC inspector can assess your specific conditions if you’re already dealing with visible moisture issues.

Why Soffit Vents Alone Won’t Solve Attic Moisture — And What Has to Work With Them

This is the part that catches people off guard: soffit vents are intake only. They don’t exhaust anything. They’re one half of a system, and treating them as a standalone fix is like replacing the intake valve on an engine and wondering why it still won’t run. For soffit vents to move moisture out of the attic, there must be exhaust openings — ridge vents, gable vents, or power exhaust fans — at or near the roof peak for the stack effect to work.

Beyond the vent system itself, the single biggest contributor to attic moisture problems is air leakage from the living space. Recessed lights, attic hatch openings, unsealed top plates around plumbing and wiring — these all allow warm, humid interior air to bypass the insulation and dump directly into the attic. Addressing those air leaks reduces the moisture load the ventilation system has to manage. The same principle applies to the building envelope as a whole: gaps around windows and penetrations let moisture-laden air into wall cavities and attic spaces in ways that no amount of soffit venting can compensate for. If you’ve ever wondered why caulking around windows in the areas homeowners always miss matters for attic health, this is why — air sealing and ventilation work as a team.

“Homeowners focus almost entirely on the exhaust side — they add ridge vents, power fans, whatever they can see from the roof. But I’d say at least 60% of the attic moisture cases I investigate come down to either blocked soffit intake or uncontrolled air leakage from the conditioned space below. Fix the leaks first, then make sure the intake is open and correctly sized. That sequence matters more than the type of exhaust vent you choose.”

Daniel Kreshner, Certified Building Analyst and Home Performance Contractor, RESNET-certified

Signs Your Soffit Vents Are Failing — Before the Mold Appears

Most people don’t think about this until they see a water stain or a remediation company is already in the attic. But there are early signals that something in the ventilation system is wrong — and they’re visible without going into the attic at all. Catching them early means the difference between a $200 baffle installation and a $6,000–$15,000 roof deck remediation.

• Frost or ice inside the attic in winter: When warm interior air reaches cold attic surfaces, it deposits moisture as frost. If you open the attic hatch in January and see white coating on the underside of the roof deck, airflow has effectively stopped — humidity is sitting in that space instead of moving out.
• Shingles curling or deteriorating faster than expected: Excess heat buildup from poor ventilation (not just moisture, but heat trapped without airflow) degrades asphalt shingles from underneath, causing premature curling and granule loss.
• Ice dams at the eaves in cold climates: Warm air escaping from the living space heats the roof deck unevenly, melting snow near the ridge while the eaves stay cold. The melt refreezes at the overhangs, creating ice dams — a classic sign of insufficient attic ventilation and air sealing.
• Musty smell from the attic hatch: Before visible mold, biological growth often produces detectable odors. A musty or earthy smell when you open the attic access is a strong indicator that humidity has been elevated long enough for microbial activity to begin.
• Attic insulation that looks compressed, discolored, or damp: Insulation that has absorbed moisture loses R-value and can itself become a surface for mold. Discoloration near the eaves is particularly telling — it often traces directly back to the blocked intake zone.

These signs don’t always mean your soffit vents are blocked — but they mean the overall system isn’t working, and the soffit intake is the first thing to check. The good news is that most soffit vent issues are genuinely fixable without structural changes. Clearing debris, installing baffles, or adding additional vents to meet the NFA calculation are all jobs that can be done in a day with basic tools and materials costing under $150 for most average-sized attics.

How to Inspect and Restore Soffit Vent Function Without Hiring a Contractor

The inspection process is simpler than most people assume, and doing it yourself gives you better information than any surface-level estimate from someone who looked at the house for ten minutes. You need a flashlight, a dust mask, and willingness to spend 20 minutes in the attic. If you have an attic hatch or pull-down stairs, you have everything you need to access the eave areas where soffit vents are located.

1. Confirm the vent openings from inside: Crawl toward the eaves with a flashlight and look for daylight coming through the soffit vent slots. If you see insulation instead, that’s your problem. Mark which bays are blocked.
2. Install rafter baffles in blocked bays: Cardboard or rigid foam baffles staple between the rafters and create a clear channel from the vent opening to the open attic cavity above the insulation. Push existing insulation back gently, staple the baffle to the underside of the roof deck, then replace the insulation.
3. Check the exterior vent covers for debris: From outside or with a ladder at the eaves, look at each vent cover for physical blockage. Insects, birds, and accumulated debris can reduce or eliminate airflow. Clean or replace covers as needed.
4. Calculate your actual NFA and compare to the 1/150 standard: Measure your attic floor area, multiply by the required ratio, and compare to the total NFA of your existing vents (check the product specifications). If you’re short, adding continuous soffit vents in gaps between existing discrete vents is usually the most cost-effective solution.
5. Seal attic air leaks while you’re in there: With the attic access open and insulation pulled back, use expanding foam or fire-rated caulk to seal around recessed lights, plumbing penetrations, and the top plates of interior walls. This reduces the moisture load that ventilation has to handle. On that note — the same attention to detail pays off at the window level: learning how to caulk windows from the inside to reduce humidity and condensation addresses another common entry point for moisture that compounds attic issues.
6. Re-check attic humidity after improvements: A simple digital hygrometer placed in the attic for a week will tell you whether moisture levels have dropped. Attic relative humidity should track reasonably close to outdoor conditions rather than staying elevated. If it’s consistently above 60% RH when outdoor humidity is moderate, the system still needs work.

The counterintuitive fact that most ventilation guides don’t mention: in hot, humid climates like the Gulf Coast or Southeast, outdoor air drawn in through soffit vents can actually be more humid than the attic air in summer, which means passive soffit-to-ridge ventilation provides less benefit than in drier or colder climates. In those conditions, minimizing air leakage from the conditioned space and using unvented attic assemblies (where insulation is applied directly to the roof deck) is sometimes the more effective approach. It’s one of those situations where the standard recommendation is correct most of the time — just not universally.

Your attic is working for or against you every single day, and soffit vents are a small physical opening with an outsized effect on what happens to your roof structure, your insulation, and the air quality in your home below. Getting them right isn’t complicated — but it does require understanding the whole system, not just the part that’s visible from a ladder outside. Fix the intake, confirm the exhaust is unobstructed, seal the leaks from the living space, and check your work with a hygrometer. That sequence will do more for attic moisture control than any product upgrade or expensive ventilation fan ever could.
