Best Whole-House Humidifiers for Forced Air Systems

Dry forced-air heat can drop indoor humidity to 15–20% in winter — drier than the Sahara Desert averages. A portable humidifier on the nightstand barely dents that problem. Whole-house humidifiers for forced air systems solve it at the source, treating every room through the same ductwork that’s causing the dryness in the first place. The question isn’t whether you need one — it’s which type actually fits your home, and why most buyers choose wrong the first time.

Why Do Most Whole-House Humidifier Buyers Choose the Wrong Type?

The shopping angle almost every article takes is this: compare brand A to brand B, pick a winner. That’s backwards. The real variable is humidifier type — bypass, fan-powered, or steam — and each one behaves completely differently inside a forced-air system. Choosing the wrong type for your setup means you’ll run it constantly, burn through maintenance costs, and still feel like the air is dry.

Here’s the counterintuitive part: the most expensive whole-house humidifiers aren’t always the most effective ones for your specific furnace. A steam humidifier rated for 3,000 square feet installed on a high-efficiency 95% AFUE furnace can actually underperform a correctly sized bypass unit — because high-efficiency furnaces produce cooler exhaust air that moves through the duct at lower temperatures, reducing a bypass unit’s evaporation rate. Knowing this one fact changes every buying decision that follows.

The thesis of this guide is simple: match humidifier type to furnace type first, then pick a brand. Everything else is secondary.

How Do Whole-House Humidifiers Actually Work With Forced Air Systems?

Your forced-air system moves conditioned air through a supply plenum and returns it through a return plenum. A whole-house humidifier taps into this loop, adding moisture to the air before it distributes through the house. The water source is a direct saddle-valve connection to your home’s water line — no refilling tanks, no daily maintenance rituals.

The mechanism varies by humidifier type, but the core principle is the same: warm, moving air passes over or through a wet surface, picks up water vapor, and carries that humidity into living spaces. The humidistat — ideally mounted on the return duct — reads the relative humidity and signals the humidifier to open its water valve when levels fall below your setpoint. That setpoint matters more than most people realize: the American Society of Heating, Refrigerating and Air-Conditioning Engineers (ASHRAE) recommends keeping indoor humidity between 30% and 50% for human comfort and to protect building materials.

One thing worth knowing: humidity output is measured in gallons per day (GPD). A home under 2,000 square feet typically needs a unit rated for at least 12 GPD; homes over 3,500 square feet often require 18 GPD or more, especially in cold climates where outdoor air infiltration is a constant drain on indoor moisture.

Bypass vs. Fan-Powered vs. Steam: Which Type Fits Your Furnace?

This is the decision that actually determines whether your humidifier performs well or sits underperforming on your plenum for years. Each type has a specific sweet spot, and none of them is universally best.

Bypass humidifiers mount on the supply plenum and use a bypass duct to pull warm air across a water panel (evaporator pad). They only operate when the furnace fan is running and work best when supply air temperatures exceed 120°F — which means they shine on older, standard-efficiency furnaces (80% AFUE or lower). They’re the least expensive to install, typically $150–$300 for the unit, and require no additional power source. The downside: their output drops sharply when furnace run times are short or supply air is cooler.

Fan-powered humidifiers have their own internal fan, which means they move air across the water panel independently of furnace operation. This makes them 30–50% more efficient in GPD output than bypass models of the same size, and they work well on high-efficiency furnaces because they don’t depend on the furnace fan’s airflow or the supply air temperature. Expect to pay $200–$500 for the unit. They use a small amount of electricity — roughly 25–50 watts continuously — but the performance gain is worth it in most homes.

Steam humidifiers heat water to produce actual steam, which gets injected directly into the supply plenum. They don’t care about furnace type, duct temperature, or fan run time — they produce consistent output regardless. They’re the right choice for very large homes (4,000+ sq ft), extremely cold climates, or homes with high-efficiency heat pumps that rarely produce warm supply air. The tradeoff is cost: $500–$1,000 for the unit, plus higher electricity consumption. But for a home in Minnesota or Vermont, that’s often the only type that delivers reliably.

“The number one installation mistake I see is putting a bypass humidifier on a 96% AFUE furnace. The supply air temperature is often only 90–100°F on those units, and bypass evaporation just stalls. A fan-powered or steam unit on the same home would cut complaints entirely.”

Daniel Pruett, HVAC Systems Engineer, 22 years in residential HVAC design

What Are the Best Whole-House Humidifiers for Forced Air Systems by Category?

Rather than stack-ranking units in a fake “best of” countdown, here’s an honest breakdown by use case. These recommendations are based on real-world performance characteristics, not spec sheet comparison shopping.

Best bypass humidifier: Aprilaire 600M. Rated at 17 GPD, compatible with homes up to 4,000 square feet on standard-efficiency furnaces. Its manual humidistat works reliably, and the whole-home evaporator pad is easy to access — you can swap it in under 10 minutes. Aprilaire’s bypass units have some of the lowest long-term maintenance costs in the category because their water panels are standardized and widely available.

Best fan-powered humidifier: Aprilaire 700M. At 18 GPD, this is the one to choose if you have a high-efficiency furnace or a heat pump with a secondary gas backup. The built-in fan means it continues adding moisture even during the furnace’s off-cycle. The automatic digital control version (700A) costs slightly more but reads outdoor temperature to automatically adjust your humidity setpoint — which prevents condensation on windows during cold snaps.

Best steam humidifier: Aprilaire 800. Output up to 34.6 GPD, which can handle homes up to 6,200 square feet. Yes, Aprilaire dominates this category, and that’s because their parts ecosystem is unmatched — HVAC techs across the country stock their components. The 800’s steam canister is self-cleaning, which matters because mineral buildup is the primary failure mode in steam humidifiers operating on hard water.

Best value pick: Honeywell HE360A. A solid fan-powered unit rated for homes up to 4,200 square feet, often available at a lower price point than comparable Aprilaire models. Installation is slightly more involved, but for a homeowner with moderate DIY comfort, it’s a reasonable option. The humidistat that ships with it is functional but basic — upgrading to a digital outdoor-sensing humidistat is worth the extra $40.

How Do You Size a Whole-House Humidifier Correctly?

Sizing is where the most money gets wasted. Manufacturers publish coverage estimates in square footage, but those numbers assume a well-sealed, average-construction home in a moderate climate. Older homes with poor insulation, lots of windows, or frequent door openings lose humidity far faster — sometimes 2–3 times as fast as a modern tight-construction home of the same square footage.

A more reliable method is to calculate your home’s air changes per hour (ACH). A drafty older home might have an ACH of 0.8 or higher, while a modern Energy Star home might be 0.3 or below. Higher ACH means more outdoor dry air infiltrating your space, which means your humidifier has to work harder just to maintain setpoint. If your home is older or you live in a climate where winter temperatures regularly drop below 20°F, size up — go to the next tier of GPD output, not the one that “just covers” your square footage.

Here’s a practical sizing table to use as a starting point:

Home Size (sq ft)	Tight Construction (GPD needed)	Average/Older Construction (GPD needed)
Under 2,000	12 GPD	17 GPD
2,000–3,500	17 GPD	22 GPD
3,500–5,000	22 GPD	30+ GPD (consider steam)
5,000+	30+ GPD	34+ GPD (steam required)

These are conservative estimates. Going a size up costs maybe $50–$100 more at purchase and nothing extra in operation — undersizing costs you in comfort all winter.

What Maintenance Does a Whole-House Humidifier Actually Need?

This is the part that most buying guides gloss over, and it’s where whole-house humidifiers earn or lose their reputation. A humidifier that isn’t maintained doesn’t just underperform — it becomes a source of biological contamination. Biofilm, mold, and mineral scale on an evaporator pad can distribute right into your ductwork if left long enough.

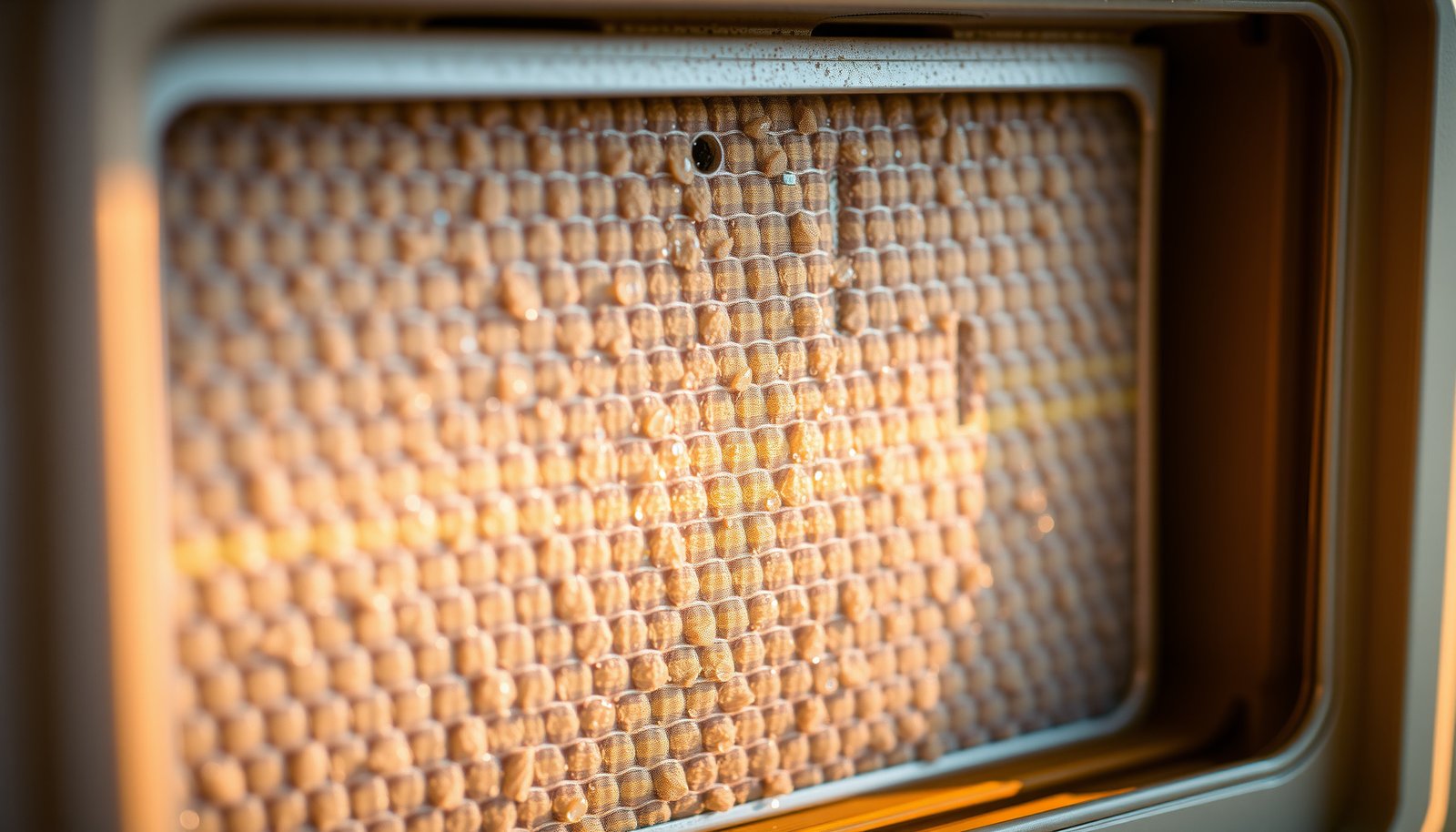

Bypass and fan-powered units need their water panels (evaporator pads) replaced once per heating season — or twice if you have hard water. That’s a $15–$25 part and a 10-minute job. The solenoid water valve should be checked annually; scale buildup can cause it to stick open (which floods the drain) or stick closed (which means zero output). Steam humidifiers need their canisters inspected every season and replaced every 2–3 years depending on water hardness.

The humidistat itself deserves attention, too. Cheap factory humidistats drift over time — a unit calibrated to hold 40% RH might actually be maintaining 32% or 48% without you knowing. A quality digital humidistat with outdoor temperature compensation runs $50–$80 and pays for itself in comfort and energy savings almost immediately. If you’re dealing with persistent dryness despite running the humidifier, a drifted humidistat is the first thing to check.

Pro-Tip: At the start of each heating season, pour a cup of water slowly into the drain pan of your bypass or fan-powered humidifier. If it drains freely, the drain line is clear. If it backs up, clear it before the unit runs — a blocked drain is how you get water damage inside your HVAC cabinet, and that’s an expensive repair that’s entirely preventable.

Can a Whole-House Humidifier Help With Sinus Problems and Respiratory Issues?

Yes — and this is one of the most clinically supported benefits of maintaining proper indoor humidity. Mucous membranes in the nose and throat need moisture to function as a barrier against airborne pathogens. When indoor air drops below 30% RH, that barrier dries out, cilia slow down, and viral particles stay suspended longer in low-humidity air. Maintaining 40–50% RH actively reduces this risk.

For people dealing with chronic sinus problems, a whole-house system is meaningfully better than a portable room humidifier because it treats the air in every room — including the hallways, living areas, and other spaces where you spend time but don’t necessarily put a portable unit. If you’re specifically researching humidity solutions for respiratory relief, the best humidifiers for sinus problems and congestion relief guide covers the full range of options from portable to whole-house, including clinical considerations for different conditions.

One nuance worth naming: if your home is already prone to condensation on windows or walls, pushing humidity above 45% in cold weather can accelerate mold growth in those areas. The health benefit of humidity has a ceiling. The right target depends on your home’s construction, not a single universal number.

How Do You Install a Whole-House Humidifier on a Forced Air System?

Most bypass and fan-powered humidifiers are within reach for a capable DIYer, but the installation involves cutting into sheet metal ductwork, running a water line, and wiring to the furnace control board — so it’s not a beginner project. Steam humidifiers add 240V electrical work to that list, which typically means hiring a licensed electrician in addition to an HVAC tech.

Here’s the installation sequence for a bypass unit, which is the most common DIY-friendly type:

1. Mount the humidifier body on the supply plenum. Mark and cut the opening per the template included with the unit. The supply plenum is the large rectangular duct directly above or beside the furnace. Sheet metal snips and a drill are your main tools here.
2. Install the bypass duct. Connect the secondary duct from the humidifier body to the return plenum. This loop pulls warm supply air through the water panel and returns it to the return side. Seal all joints with foil HVAC tape — not standard duct tape, which fails at temperature.
3. Connect the water supply line. Use the saddle valve on a cold water line near the furnace. Run 1/4-inch copper or braided supply tubing to the solenoid valve on the humidifier. Keep the run as short as possible to minimize the freeze risk in unheated spaces.
4. Wire to the furnace control board. The humidifier’s solenoid valve needs 24V AC power, which most modern furnace control boards provide through a dedicated humidifier terminal (labeled HUM or similar). Consult the furnace manual before wiring — some boards require a jumper adjustment.
5. Install and calibrate the humidistat. Mount it on the return duct, 12–18 inches from the furnace. Set the initial target to 35% RH and adjust upward in 5% increments over the first week, watching for condensation on windows as the limit indicator.
6. Test the full cycle. Call for heat at the thermostat, confirm the furnace fan engages, and watch for water to flow across the evaporator pad within 2–3 minutes of the humidistat signaling demand. Check the drain for proper flow before closing up the area.

Professional installation typically runs $200–$400 for a bypass or fan-powered unit. Given that a failed install can mean water damage inside your HVAC cabinet, it’s worth hiring out if you’re not confident with sheet metal work and low-voltage wiring.

What Should You Watch Out for With Humidity and Your HVAC System?

Over-humidification is a real problem, and it’s underreported in buying guides that want you to feel good about your purchase. Too much moisture in a forced-air system promotes condensation inside the ductwork, which leads to mold colonies that are genuinely difficult to remediate. Fiberglass duct liner is especially susceptible — once mold establishes in it, the only real fix is duct replacement.

The interaction between humidity control and the rest of your HVAC system also matters in summer. Whole-house humidifiers should be shut off completely when you switch to cooling mode — every bypass and fan-powered unit has a manual damper that closes the bypass duct. Leaving it open in summer adds load to your AC system and can push humid air into cool ductwork, exactly the conditions mold thrives on. This is a step that’s easy to forget and has consequences you won’t notice until the following heating season.

On the flip side, if summer brings its own humidity battles in your home, you might want to explore dedicated solutions for the cooling season. The best dehumidifiers with auto-shutoff guide is a solid reference for managing excess moisture when the humidifier is hibernating and the weather turns muggy.

Are There Specific Features That Make a Whole-House Humidifier Worth the Extra Cost?

Not all premium features justify their price bump, so here’s an honest breakdown of which upgrades actually matter in real-world use.

• Outdoor temperature sensing: Genuinely useful. As outdoor temps drop, the maximum safe indoor humidity level drops too (to avoid window condensation). A humidistat that automatically adjusts setpoint based on outdoor temperature is worth $30–$60 extra versus a fixed-setpoint unit.
• Self-cleaning drain: Worth it if you’re on a hard water supply. Scale buildup in the drain pan causes overflow failures, and a self-flushing drain cycle keeps the pan cleaner between service intervals.
• Smart home integration: Debatable. Some newer humidistats connect to home automation systems or display on thermostat interfaces. Useful if you actively monitor your home’s environment; largely irrelevant if you set it and leave it alone.
• Larger evaporator pad surface area: Directly translates to higher output at the same water flow rate. Units with larger pads handle bigger homes and drier climates better — this isn’t marketing, it’s physics.
• Service indicator lights: Underrated. A light that tells you when the water panel needs replacement prevents the common situation where someone runs a fouled pad all winter, gets no output, and blames the unit instead of the maintenance schedule.

Skip features that are purely cosmetic — brushed metal housings, decorative covers, anything that doesn’t affect the water-to-air transfer mechanism or the control logic. Your HVAC cabinet isn’t a showroom.

How Long Do Whole-House Humidifiers Last, and What’s the Real Cost of Ownership?

A quality bypass or fan-powered humidifier, properly maintained, lasts 10–15 years. Steam units typically run 7–12 years because the canister and heating element take on more wear. The purchase price is only part of the equation — total cost of ownership includes water consumption, replacement pads, and occasional service calls.

Bypass and fan-powered units consume 3–5 gallons of water per gallon of humidity produced because they drain excess water to prevent mineral buildup on the pad. That sounds wasteful, but it keeps scale from hardening on the evaporator surface. Steam units are more water-efficient but use significantly more electricity — running a steam humidifier in a cold climate can add $10–$25 per month to your electric bill, which is worth factoring into your total cost calculation before you assume steam is the obvious premium choice.

Annual maintenance costs on a bypass or fan-powered unit run $20–$50 for a water panel and a basic inspection. That’s genuinely low compared to what chronic low humidity does to hardwood floors, wood furniture, and the dry
