Best Whole-Wall Moisture Detection Systems for Old Buildings

Here’s what most people get wrong about moisture in old buildings: they think they need to find the wet spot. They pull out a single-point moisture meter, poke around the most suspicious-looking patch of wall, and call it done. But in pre-1950s masonry construction — stone, solid brick, lime-plastered walls — moisture doesn’t work that way. It migrates laterally, travels through capillary channels you can’t see, and hides behind dry-looking surfaces for months before it does visible damage. By the time you find one wet spot, the moisture front is already 18 inches in every direction. Whole-wall moisture detection systems exist specifically because old buildings need a fundamentally different diagnostic approach — and choosing the right system means understanding why old walls move moisture differently than modern stud-framed construction.

Why Old Buildings Make Single-Point Moisture Meters Useless

Modern drywall is predictable. If it’s wet behind the paper face, the moisture is concentrated near the source. Old solid masonry walls — especially lime mortar construction from before Portland cement became standard — behave more like sponges than barriers. They’re designed to absorb moisture and release it slowly, which made perfect sense when buildings were drafty and walls could breathe freely. Seal up the building for energy efficiency and suddenly those walls can’t release moisture fast enough, and the absorption front expands across the entire wall plane, not just near the obvious entry point.

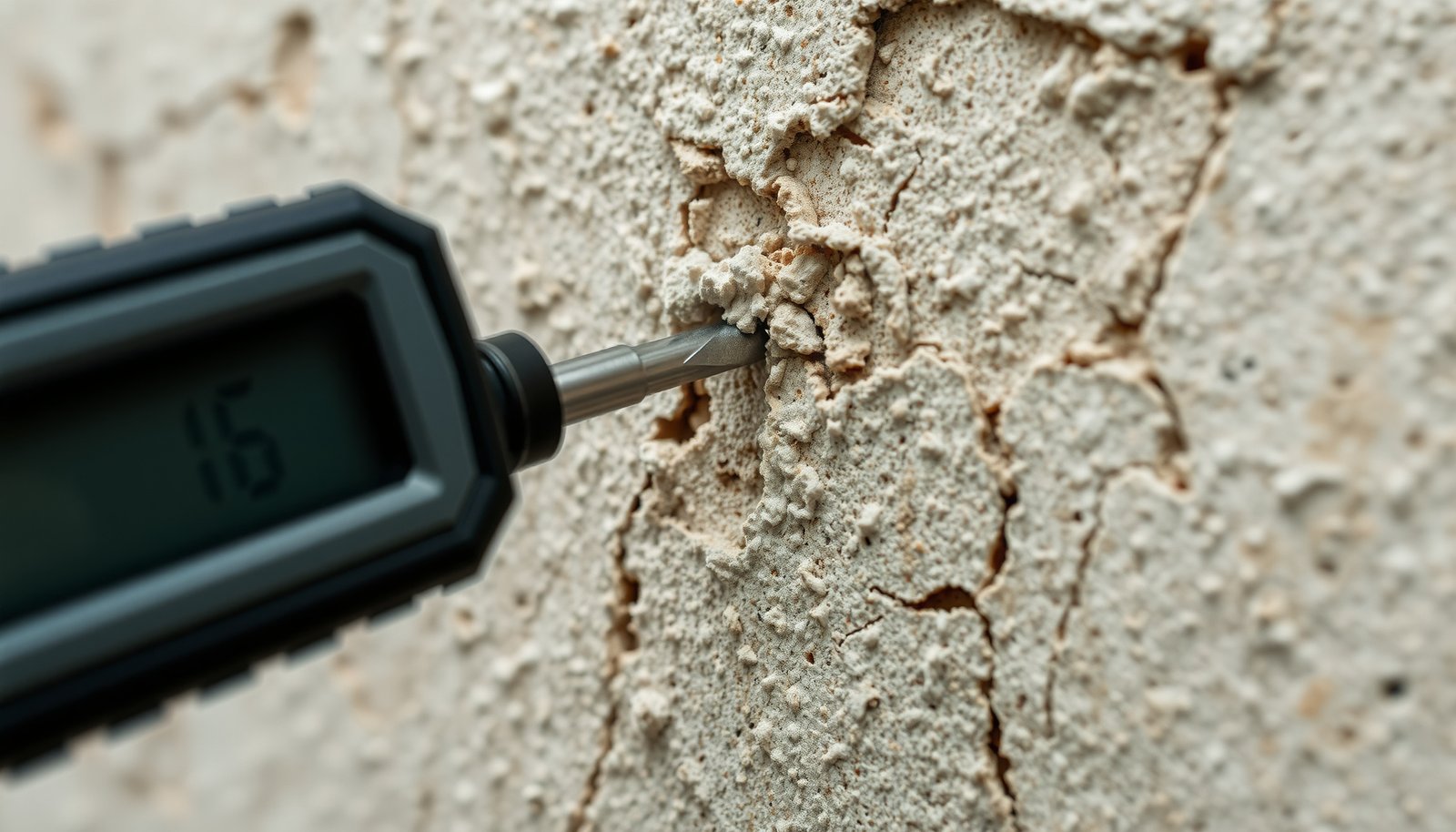

This is the fundamental problem with using a handheld pinned meter on a single spot: you’ll get a reading, but you won’t get a map. A wall measuring 14% moisture content at one point might read 28% just 10 inches away and 9% at the corner — and all three readings matter for understanding what’s actually happening structurally. Professional building surveyors working on Georgian-era townhouses or pre-war apartment blocks use this spatial distribution of readings, not any single measurement, to diagnose the source and severity of intrusion. Single-point meters are fine for quick checks — there are some solid Best Damp Meters Under $50: Affordable Moisture Detection options that work well for that purpose — but they were never designed to characterize moisture across an entire wall system.

This image shows the moisture distribution pattern across a section of old solid brick wall — notice how the saturation spreads horizontally from a single intrusion point, which is exactly why mapping an entire wall surface gives you diagnostic information that a single probe reading never can.

What “Whole-Wall Detection” Actually Means — and What It Doesn’t

The term gets used loosely, so it’s worth being precise. Whole-wall moisture detection isn’t one product — it’s an approach that combines multiple measurement techniques to build a spatial understanding of moisture distribution across an entire wall surface, from floor to ceiling and corner to corner. There are three distinct technologies that fall under this umbrella: multi-point sensor arrays (permanent or semi-permanent sensors embedded at grid intervals), scanning radio-frequency systems (non-invasive meters swept across a wall surface), and thermal imaging combined with surface hygrometry. Each has a completely different use case in old buildings, and conflating them leads to expensive mistakes.

What whole-wall detection is not: it’s not a single expensive piece of equipment that magically tells you everything. Even the best RF-based scanning meters — devices that use microwave or low-frequency radio waves to read moisture content several inches into a masonry wall without touching it — require the operator to take dozens of overlapping readings in a systematic grid pattern and then interpret the data spatially. The equipment matters, but the methodology matters more. A £3,000 Tramex CME5 used haphazardly gives worse diagnostic information than a £400 Protimeter Surveymaster used systematically across a proper survey grid.

The Three Systems Worth Considering for Old Masonry and Plaster Walls

Old buildings narrow the field considerably. Pinned resistance meters — the kind that drive two electrodes into the surface — are destructive on historic lime plaster and give unreliable readings on masonry because the ionic salts present in old mortar skew electrical conductivity measurements upward. You can get a reading of 22% moisture content in a wall that’s actually at 14%, because the salt content is conducting electricity almost as well as water would. That rules out pin meters as a primary diagnostic tool. What’s left are the three approaches that actually work.

Here’s a breakdown of the main systems by how they work and where they perform best in old building contexts:

1. Non-invasive RF/microwave scanning meters (e.g., Tramex CME5, Protimeter MMS3 in scan mode): These press flat against the wall surface and read moisture content 1-4 inches deep without any penetration. They’re ideal for surveying lime-plastered masonry quickly. The limitation is that they can’t differentiate between a wall that’s wet at the surface and one that’s saturated 6 inches deep — both return high readings.
2. Thermal imaging cameras (FLIR C5, Seek Reveal, or contractor-grade units): These don’t measure moisture directly — they measure surface temperature differentials. Evaporating moisture cools a surface, so wet areas appear cooler (darker on most palettes). Used alongside a hygrometer to track ambient conditions, they’re exceptional at finding the edges of a moisture front on large wall surfaces. They work best when interior and exterior temperatures differ by at least 18°F.
3. Embedded sensor arrays (Omnisense S-900, Protimeter Timbermaster with remote probes, or custom IoT sensor installations): These are permanent or semi-permanent probes installed at specific depths in the wall — typically 25mm, 50mm, and 100mm intervals — that log moisture content continuously over weeks or months. For old buildings where moisture is seasonal and cyclical, continuous logging reveals patterns that a single-visit survey completely misses. A wall might read perfectly dry in August and show 85%+ RH at the 50mm depth in February.
4. Capacitance-based flat-plate sensors used in systematic grid surveys: Less common in DIY contexts but worth knowing about. These measure the dielectric properties of the wall material at the surface — less affected by salt contamination than resistance methods. The Gann Hydromette series uses this approach and is standard kit for conservation architects working on listed buildings.
5. Combined systems with data logging and mapping software: The highest-tier approach for serious remediation projects. Survey data from RF scanning is entered into grid-based mapping software (some surveyors use custom spreadsheets, others use dedicated apps like Damp Mapper) to generate a color-coded moisture map of the entire wall. This is how you prove to a landlord or insurer that moisture intrusion is structural, not tenant-caused.

How to Actually Run a Whole-Wall Survey in a Pre-War Apartment

Most people don’t think about this until they’ve already hired a remediation company and gotten a quote that seems suspiciously vague about where the moisture is actually coming from. Running your own whole-wall survey before calling anyone in gives you enormous leverage — you’ll know whether you’re dealing with rising damp (moisture concentrated in the lower third of the wall, typically below 1 meter), penetrating damp (moisture tracking inward from an external wall face, often patchy and higher up), or condensation-related saturation (usually diffuse, appearing first at thermal bridges like window reveals and wall-floor junctions).

The practical method: divide the suspect wall into a grid with squares approximately 30cm x 30cm — painter’s tape works fine as a temporary grid. Take a non-invasive reading at the center of each square and record it. Use a simple spreadsheet where rows are heights on the wall (floor, 30cm, 60cm, 90cm, 120cm, 150cm, 180cm, ceiling) and columns are horizontal positions. When you color-code the cells by moisture range — below 15% is green, 15-20% is yellow, above 20% is red — you’ll see the moisture distribution pattern emerge visually. In most pre-war apartments we’ve seen surveyed this way, the pattern immediately tells the story: rising damp produces a classic “bathtub ring” shape in the data, while penetrating damp produces an inward-tracking diagonal plume from the exterior face.

Pro-Tip: Always run your whole-wall survey at two different times — once after a dry spell of at least 5 days, and once within 48 hours of heavy rain. The delta between the two readings is often more diagnostic than either reading alone. A wall that jumps from 12% to 26% moisture content after rain almost certainly has penetrating damp from a failed pointing joint or cracked render. A wall that sits at 19% regardless of weather conditions is more likely dealing with rising damp or an internal plumbing leak that’s unrelated to weather events entirely.

“The mistake I see repeatedly in old building surveys is treating moisture content as a pass/fail threshold rather than as a spatial dataset. In solid masonry construction, a reading of 18% at one point is almost meaningless without knowing what surrounds it — that same reading at the center of a dry field is a localized problem, but at the edge of a high-moisture zone it means the front is still actively advancing. The whole-wall picture changes everything about how you diagnose and remediate.”

Dr. Fiona Marchetti, BSc (Hons) Building Surveying, Chartered Member RICS, specializing in pre-1940s residential moisture pathology

Choosing the Right System Based on What Your Old Building Is Actually Made Of

Here’s the counterintuitive fact most articles on this topic skip entirely: the best moisture detection system for your wall depends less on the severity of the problem and more on what your wall is physically made of. RF-based non-invasive meters calibrate differently for different materials — a reading on limestone rubble infill reads completely differently than the same device reading fired clay brick, even at identical actual moisture contents. Using a meter calibrated for “masonry” as a generic setting on a stone-and-lime-mortar wall can produce readings that are off by 30-40% relative humidity at depth.

This table shows how detection method performance varies by common old-building wall construction types:

Wall Construction Type	Best Detection Method	Method to Avoid	Notes
Solid clay brick (pre-1920)	RF scanning + thermal imaging	Pin resistance meters	Salt contamination severely skews resistance readings; RF with brick calibration is reliable
Lime-plastered stone rubble	Embedded sensor arrays + thermal imaging	RF scanning alone	Variable density of rubble infill makes RF readings inconsistent; probes at measured depths give real data
Cavity brick (1920s-1950s)	RF scanning with deep-penetration mode	Surface capacitance only	Moisture can pool in cavity floor unseen by surface methods; deep RF or endoscope inspection needed
Lathe-and-plaster on timber frame	Pin meters into timber + thermal imaging	RF non-invasive meters	RF reads wood differently than masonry; pin meters in timber studs give reliable wood moisture content readings above 19% which indicates active decay risk

One more honest nuance worth stating plainly: no single system works perfectly for mixed construction, and many older buildings — especially those that have been renovated multiple times over a century — have wall sections that shift from brick to stone to repaired concrete block within a single run of wall. In those situations, the systematic grid survey approach with multiple detection methods is the only reliable option. It’s more time-consuming, but the alternative is making remediation decisions based on incomplete data, which consistently leads to treatments that don’t address the actual moisture pathway.

If you’re at the stage where you’re trying to manage ambient moisture in rooms while you sort out a longer-term detection and remediation plan, it’s worth understanding why moisture absorbers have real limitations in old buildings — specifically, that passive desiccants like calcium chloride and silica gel products work at very different humidity ranges. There’s a solid breakdown of these in this Best DampRid Alternatives: Calcium Chloride vs Silica Gel Compared guide that helps clarify which is actually useful when wall moisture is the primary source driving indoor RH above 60%.

What makes old buildings genuinely different from a detection standpoint also comes back to temperature. Cold masonry walls — particularly external walls in unheated spaces or rooms with poor insulation — can show elevated moisture readings that are partly a measurement artifact caused by condensation on the probe surface itself. The wall isn’t necessarily wetter; the probe has hit the dew point of the surrounding air. At 55°F dew point in a room held at 62°F, any surface below roughly 57°F will show surface condensation, and that condensation registers as moisture content on contact-based sensors. Controlling for this means measuring wall surface temperature alongside moisture content — any reading taken when surface temperature is within 5°F of the room’s dew point should be repeated under different conditions before being used diagnostically.

The bullet points below summarize the practical conditions under which each detection approach is most reliable in old building contexts:

• RF non-invasive scanning: Most reliable when wall surface temperature is above 50°F and ambient RH is below 70% — at higher humidity, surface condensation affects readings
• Thermal imaging: Requires a temperature differential of at least 18°F between inside and outside, and works best when the wall has been at stable temperature for several hours — not immediately after heating a cold room
• Embedded sensor arrays: Need at least 4-6 weeks of continuous logging to capture a meaningful moisture cycle, especially in buildings with seasonal heating patterns
• Pin resistance meters on plaster: Only reliable on gypsum-based modern plasters — lime plaster with salt contamination renders the readings practically useless for absolute moisture content
• Capacitance flat-plate sensors: Perform best on smooth, even surfaces — irregular stone or heavily textured render causes air gaps that reduce contact area and introduce reading errors of up to 8% moisture content
• Combined survey methods: Most diagnostic value comes from using at least two different detection principles simultaneously — conflicting readings between methods are themselves diagnostic information, often indicating salt contamination or a cavity construction layer

Old buildings don’t give up their moisture secrets easily, and no detection system changes that fundamental reality. What the right system does is give you enough spatial and temporal data to stop guessing — to move from “there’s definitely moisture somewhere in this wall” to “there’s a penetrating damp front advancing inward from the north-facing external face, currently extending 8 inches into the wall at heights between 90cm and 150cm, and it correlates directly with rainfall events rather than rising ground moisture.” That’s the difference between a surveyor’s report that a contractor can actually act on and one that just confirms what you already knew by looking at the wall. The technology for building-accurate whole-wall moisture maps exists, is available to non-professionals, and costs far less than a single failed remediation treatment. Start with the map.
