Moisture Problems Under a Mobile Home: Skirting, Ventilation and Vapor Barriers

Under a mobile home, ground moisture doesn’t just sit there — it moves upward, and almost nothing stops it unless you’ve set up the right system. That’s the part most guides skip: they treat vapor barriers, skirting, and ventilation as three separate fixes when they’re actually one interconnected system. Get any one of them wrong, and the other two can’t compensate.

The bottom line is this: the #1 cause of moisture problems under a mobile home isn’t a leaking pipe or a flood — it’s passive ground evaporation combining with inadequate air exchange and a skirting setup that traps humidity instead of managing it. Once that humidity hits 60% or higher in the crawl space (and under a mobile home it often reaches 80–90% in summer), you’ve got the conditions for wood rot, mold colonization within 24–48 hours of a moisture event, and structural damage that compounds quietly over years.

Why the Ground Under Your Mobile Home Is the Real Moisture Source

Bare soil releases water vapor continuously. A single square foot of exposed ground can evaporate up to 0.1 gallons of water per day under warm conditions — multiply that by the entire footprint of a 1,200 square foot mobile home and you’re dealing with potentially 100+ gallons of invisible moisture moving upward every single day. Most homeowners are looking for drips or puddles, but the real problem is gaseous water vapor they can’t see at all.

Mobile homes sit close to the ground — typically 18 to 36 inches of clearance — which means that crawl space has limited volume and poor natural air circulation compared to a taller basement. That shallow, enclosed space becomes a humidity trap. The ambient relative humidity in an unsealed crawl space under a mobile home in a humid climate can run 15–25 percentage points higher than the air just a few feet away outside.

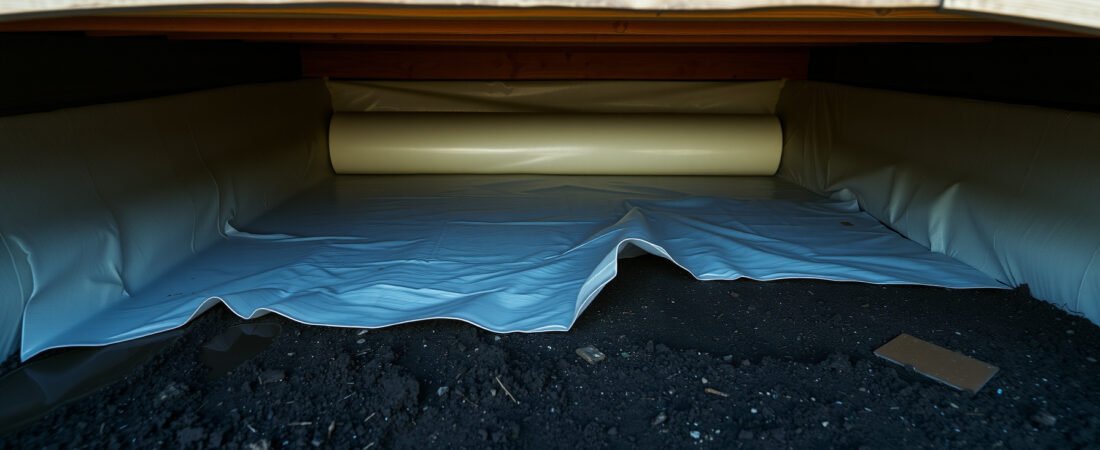

This image shows the underside of a mobile home where ground moisture accumulates between the soil surface and the belly board — exactly where early wood rot and mold damage begins before it’s visible from inside the home.

What Skirting Actually Does to Your Crawl Space Humidity (It’s Not What You Think)

Here’s where most people get badly misled: they install skirting to “seal in” the crawl space and assume they’ve protected it. In reality, solid skirting without deliberate ventilation openings does the opposite — it creates a sealed box where ground moisture has nowhere to go and humidity climbs fast. The skirting itself isn’t the problem; it’s treating skirting as a moisture barrier rather than a perimeter enclosure that still needs managed airflow.

Picture a mobile home owner who adds brand-new vinyl skirting in spring, thinking it’ll keep the crawl space dry by keeping rain and wind out. By July, their floor joists are showing early signs of mold and the insulation between the joists is visibly damp. The skirting worked perfectly — at trapping the evaporating ground moisture inside with no way out. Ventilation vents in the skirting are not optional; they’re the pressure-release valve the whole system depends on.

How to Calculate Whether Your Ventilation Is Actually Adequate

The traditional building code standard is 1 square foot of net free ventilation area for every 150 square feet of crawl space floor area — but that’s the bare minimum, and it assumes you have a continuous vapor barrier covering the ground. Without a ground cover, some building scientists argue you need closer to 1:100 (one square foot of vent area per 100 square feet of floor) to compensate. Under a mobile home, where the crawl space is shallow and air movement is restricted by the belly board and insulation, erring toward more ventilation is almost always the right call.

Vent placement matters just as much as total area. Vents should be positioned to allow cross-ventilation — ideally on opposite sides of the skirting so air has a path through, not just in. A single row of vents on the south side of a mobile home’s skirting does almost nothing for the north side crawl space humidity. Diagonal corner placement or alternating north-south vent pairs creates actual airflow rather than stagnant pockets.

Here’s how different ventilation approaches compare for a typical 1,000 sq ft mobile home crawl space:

Ventilation Setup	Expected Crawl Space RH (Summer)	Adequacy
No vents, solid skirting	85–95%	Dangerous — mold certain
Vents on one side only	70–80%	Poor — stagnant zones remain
Cross-ventilation, no vapor barrier	60–70%	Marginal — depends on climate
Cross-ventilation + full vapor barrier	45–60%	Acceptable in most climates

Vapor Barriers Under Mobile Homes: The Spec Details That Actually Matter

A vapor barrier does one thing: it blocks ground moisture from evaporating upward into the crawl space air. But the difference between a vapor barrier that actually works and one that fails within two years comes down to thickness, overlap, and edge treatment — and most DIY installations get at least one of these wrong. A 6-mil poly sheet laid loosely in overlapping strips with no sealing at the edges will still allow significant moisture migration at every seam and gap.

The counterintuitive fact most articles don’t mention: a thicker vapor barrier isn’t always better if it’s not properly sealed. A well-installed 6-mil sheet with taped seams and edges secured to the foundation piers or skirting framing outperforms a carelessly laid 20-mil sheet every time. Thickness matters mainly for durability — resistance to punctures from debris, footsteps during maintenance, and animal activity — but sealing quality determines actual moisture control performance.

For vapor barrier installation under a mobile home, follow these steps in order:

1. Clear the ground first. Remove rocks, sticks, and debris that will puncture the barrier. Even small punctures add up — a 1-inch hole every few feet negates much of the benefit.
2. Use minimum 6-mil polyethylene, ideally 10–12 mil in climates with high humidity or if the crawl space is accessed regularly for plumbing or HVAC maintenance.
3. Overlap seams by at least 12 inches and tape them with moisture-resistant seaming tape — not standard duct tape, which fails in high-humidity environments within a season.
4. Run the barrier up the perimeter walls or skirting framing by 6 inches and secure it. Leaving gaps at the edges is where most installations lose 30–40% of their effectiveness.
5. Seal around every pier, post, and penetration — plumbing, electrical conduit, and HVAC ducts are all bypass routes for ground moisture vapor.
6. Inspect annually — check for tears, pest damage, and moisture pooling on top of the barrier, which signals drainage issues that the barrier alone can’t solve.

Pro-Tip: Before laying any vapor barrier, do a 24-hour condensation test: tape a 12×12 inch square of plastic sheet flat to the bare soil and leave it overnight. If moisture beads on the underside in the morning, your ground is actively evaporating moisture at a rate that makes a vapor barrier non-negotiable — not optional.

When Ventilation and Vapor Barriers Aren’t Enough: The Overlooked Factors

Some mobile home crawl spaces stay persistently damp even after a proper vapor barrier and code-compliant ventilation are installed. That’s not a failure of the materials — it usually means there’s a secondary moisture source the system isn’t designed to handle. Seasonal standing water from rain runoff, a high water table, or a grading issue that directs water toward the home’s perimeter will overwhelm any passive ventilation-and-barrier setup.

Grading is the one fix that almost nobody thinks to address first. The ground around a mobile home should slope away from the skirting perimeter at a minimum of 6 inches of drop over the first 10 feet. A flat or inward-sloping grade funnels rainwater under the skirting and into the crawl space, where it evaporates into trapped air. No vapor barrier handles that load well. Fix the grade before spending money on anything else, and you’ll often see crawl space humidity drop noticeably without touching the barrier or vents.

Beyond grading, there are a few other overlooked sources worth checking:

• HVAC condensate drainage: If your air handler or ductwork under the home drains condensate into the crawl space rather than away from it, that’s adding gallons of water directly to your moisture problem every day the AC runs.
• Plumbing drips: Even slow drips from supply lines or drain connections create sustained wet spots that stay damp long after the drip source is fixed.
• Duct leakage: Leaky HVAC ducts under a mobile home pull moist crawl space air into the distribution system and push conditioned air into the crawl space — both effects raise interior humidity and accelerate moisture damage.
• Belly board damage: The insulated belly board on the underside of most mobile homes acts as a secondary moisture barrier. Tears, sags, or pest damage let crawl space humidity contact the subfloor directly.
• Closed foundation vents in winter: Seasonally closing crawl space vents in winter makes sense in cold climates to prevent pipe freezing — but in mild or humid winter climates, closed vents let moisture accumulate to damaging levels by spring.

“The moisture problems I see under mobile homes almost always have two causes running at the same time — a ground evaporation source and a ventilation restriction. Fixing just one of them is like patching one side of a leaking boat. You need to address both simultaneously, or the one you didn’t fix will keep driving humidity right back up to damaging levels.”

Raymond Holt, Certified Building Scientist and Manufactured Housing Structural Consultant, 22 years specializing in mobile and manufactured home enclosures

Seasonality adds another layer of complexity that’s worth acknowledging honestly. Mold risk under a mobile home peaks differently than in site-built homes — the crawl space can hit dangerous humidity levels in spring before outdoor temperatures even feel warm, because soil temperatures lag behind air temperatures and drive heavy evaporation exactly when ventilation vents are still partly blocked by winter covers that were never reopened.

The structural consequences of ignoring these combined factors are severe and well-documented. Mobile homes develop mold and structural rot significantly faster than site-built houses partly because of the construction materials used (OSB subfloor, kraft-faced insulation, and particleboard are all highly moisture-sensitive) and partly because the crawl space geometry makes passive moisture management harder to achieve.

One honest nuance worth stating directly: whether you should prioritize ventilation or vapor barrier installation first depends on your specific situation. In a dry climate with sandy, well-drained soil, ventilation alone may keep crawl space humidity under 60% without any ground cover. In the Southeast, Gulf Coast, or Pacific Northwest, ventilation without a vapor barrier is almost never sufficient — the ground moisture load is simply too high for air exchange alone to handle. Know your climate and test your actual crawl space humidity with a hygrometer before deciding which upgrade to tackle first.

If you’ve addressed the vapor barrier, confirmed cross-ventilation is working, fixed the grading, and you’re still seeing crawl space humidity above 70% RH consistently, the next step is a dedicated crawl space dehumidifier — one sized specifically for the cubic footage of your underfloor space, not a basement unit borrowed from inside the house. A unit that runs continuously but can’t pull the space below 65% RH is undersized for the moisture load present. Target 50–55% RH as your benchmark for a healthy, mold-resistant crawl space environment.

The crawl space under a mobile home rewards consistent attention more than any single dramatic fix. Check your skirting vents every spring to make sure they’re open and unobstructed by leaves or pest nests, walk the perimeter after heavy rain to confirm water is draining away from the foundation, and do a quick visual of the vapor barrier once a year. That routine — not a one-time renovation — is what keeps moisture problems from quietly compounding into a repair bill that rivals the value of the home itself.
